219-02

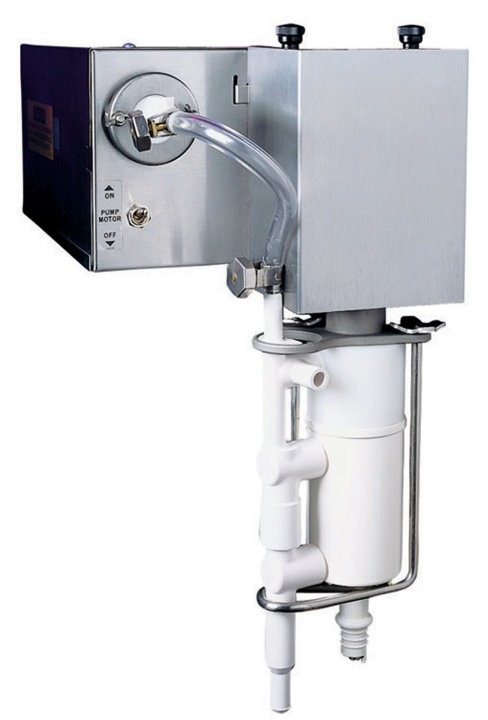

115-volt 1-phase remote mix pump
Designed for all Stoelting manufactured freezers, this remote mix pump boasts an output capacity of 45 gallons per hour of standard soft serve or shake mix, making it a crucial part of any frozen treat operation. Durable and reliable, it provides peace of mind with valuable built-in features like a pressure relief valve to prevent excessive pressure buildup in the freezing cylinder or mix line, along with an air-controlled pressure switch and overload protection.
- For use with all Stoelting manufactured freezers
- Output capacity of 45 gallons per hour of standard soft serve or shake mix
- Built-in pressure relief valve, air-controlled pressure switch and overload protection
- Factory-set pressure
- Adjustable overrun
- Heavy-duty steel frame with high-quality stainless steel exterior for easy cleaning and durability
- Available for Stoelting model numbers: CF101, VB9, O111, E/F111, E/F112, E/F122, E/F131 and F/SF144
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your sales representative for details.
- 5-year limited warranty on major components; 1-year on labor and nonwear parts
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your sales representative for details.
- Customizable illuminated billboard space (optional)
- Super-sized condensing system provides high output even in high-temperature conditions
- Delrin is a registered trademark of DuPont Polymers, Inc.
- Shake mixer and floor stand are optional
Product Specifications
Model Information
Name | Value |
---|---|
UPC | 671080048017 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 15 x 8-3/4 x 17-1/2 |
(W) Width (IN) | 15 |
(D) Depth (IN) | 8.75 |
(H) Height (IN) | 17.5 |
Overall Dimensions (CM) | 38.1 x 22.2 x 44.5 |
(W) Width (CM) | 38.1 |
(D) Depth (CM) | 22.2 |
(H) Height (CM) | 44.5 |
Electrical
Name | Value |
---|---|
Frequency (Hz) | 60 |
Hardwired Connection | No |
Hz | 60 |
Phase | 1 |
Plug | NEMA 5-15P |
Plug Connection | Yes |
Running Amps | 0.7 |
Voltage | 115 |
Weight
Name | Value |
---|---|
Weight (LB) | 33 |
Weight (KG) | 15 |
Case Lot Measurement
Name | Value |
---|---|
Case Width | 14 |
Case Height | 11 |
Case Length | 16 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
