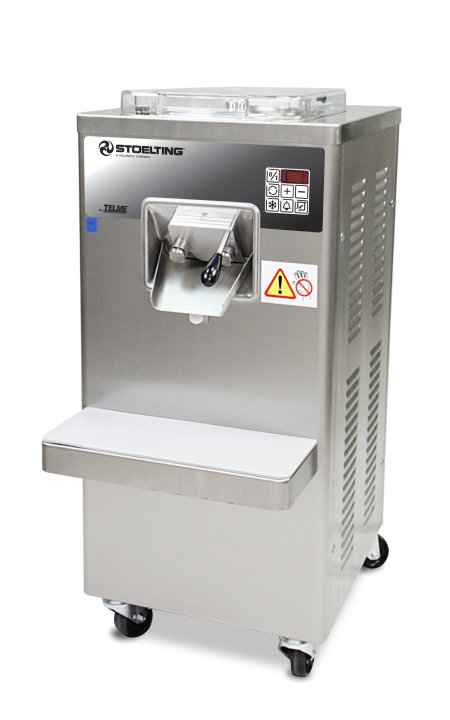

208- to 240-volt 3-phase air-cooled 2-4 quart vertical batch freezer

VB25-309A

208- to 240-volt 3-phase air-cooled 2-4 quart vertical batch freezer

Where to Buy

Enjoy a perfect combination of high-capacity performance and maximum energy efficiency with this vertical batch freezer. Rugged and reliable, this 208- to 240-volt, 3-phase, air-cooled unit produces approximately 2-4 quarts of product. Simple to operate and easy to maintain, it will ensure perfect, premium ice cream, gelato, custard, sherbet, sorbet or water ices every time.

208- to 240-volt, 3-phase, water-cooled
1.8-hp compressor, 2.7-hp drive motor
Vertically oriented freezing cylinder provides high capacity and maximum energy efficiency
Large diameter freezing cylinder facilitates extremely fast freezing times, minimizing ice crystal formation
Easy cleaning and effortless assembly of beater parts
Affordable, heavy-duty plastic beater blades minimize frequent, costly blade replacement
Heavy-duty stainless steel beater shaft is built to withstand years of use
Clear, acrylic freezing cylinder cover allows operator to monitor product during freezing process

Product Specifications

Model Information

Name	Value
UPC	671080141428

Unit Dimensions

Name	Value
Overall Dimensions (IN)	18-1/4 x 37-3/4 x 20
(W) Width (IN)	18.25
(D) Depth (IN)	37.75
(H) Height (IN)	20
Overall Dimensions (CM)	46.4 x 95.9 x 50.8
(W) Width (CM)	46.4
(D) Depth (CM)	95.9
(H) Height (CM)	50.8

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	No
Hz	60
Phase	3
Plug	Plug not included
Plug Connection	Yes
Running Amps	13
Voltage	208-240

Weight

Name	Value
Weight (LB)	254
Weight (KG)	115.2

Construction

Name	Value
Refrigerant	R448A

Frozen Treat: General Specifications

Name	Value
Cooling	Air
Compressor (Btu/hr)	4580
Number of Drive Motors	1
Drive Motor (hp)	2.7
Number of Freezing Cylinders	1
Number of Freezing Cylinder Compressors	1
Air Flow	Units require 20" (50.7 cm) air space at the back
