SCBA168-37

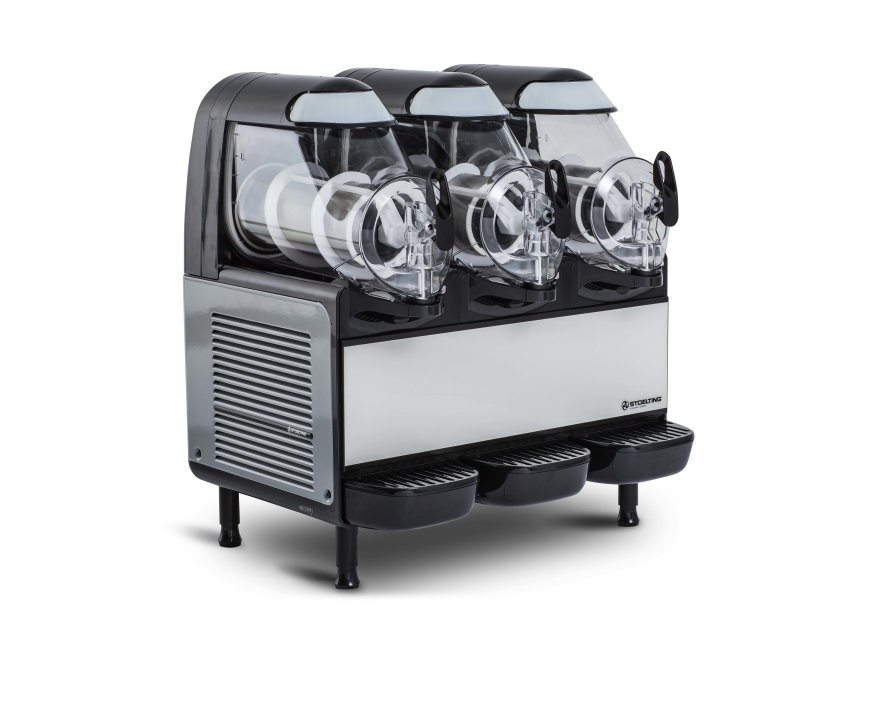

Frozen Beverage Dispenser Three 6 Liter Bowls 115-volt, 60Hz, Air-Cooled
Effortless to operate and maintain, this frozen beverage dispenser with three 6-liter bowls is designed for frozen granitas and dairy-based drinks including iced or frozen coffee or tea, frozen cocktails, smoothies and more. Along with years of dependable service, this professional-grade machine offers valuable menu flexibility, operational efficiency and consistent product quality.
- Three 6 Liter Bowls
- 115-volt, 9.6-amp, 60Hz, 2,100 Btu/hr
- Magnetic drive system is reliable, durable and easy to use
- Digital control features customizable settings for consistent results and menu flexibility
- Built-in timer automatically places machine in night mode
- Gasketless spigot is easy to clean and maintain
- Standard, double-wall bowls prevent condensation on unit exterior
- Robust compressor reduces freeze-down times and promotes efficient operation
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080737430 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23-5/8 x 18-7/8 x 24 |
| (W) Width (IN) | 23.62 |
| (D) Depth (IN) | 18.87 |
| (H) Height (IN) | 24 |
| (WL) Width between legs | 20.5 |
| (DL) Depth between legs | 11.375 |
| Overall Dimensions (CM) | 60 x 47.9 x 61 |
| (W) Width (CM) | 60 |
| (D) Depth (CM) | 47.9 |
| (H) Height (CM) | 61 |
| (WL) Width between legs (CM) | 52.1 |
| (DL) Depth between legs (CM) | 28.9 |
| Size | 6 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-20P |
| Plug Connection | Yes |
| Running Amps | 9.6 |
| Voltage | 115 |
Volume
| Name | Value |
|---|---|
| Bowl Capacity (GAL) | 1.58 |
| Bowl Capacity (L) | 6 |
| Total Bowl Capacity (GAL) | 4.74 |
| Total Bowl Capacity (L) | 18 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 125 |
| Weight (KG) | 56.7 |
Construction
| Name | Value |
|---|---|
| Number of Bowls | 3 |
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 2100 |
| Number of Drive Motors | 3 |
| Drive Motor (hp) | 1/18 |
| Number of Freezing Cylinders | 3 |
| Air Flow | Units require 6" (15.24 cm) air space on all sides |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
