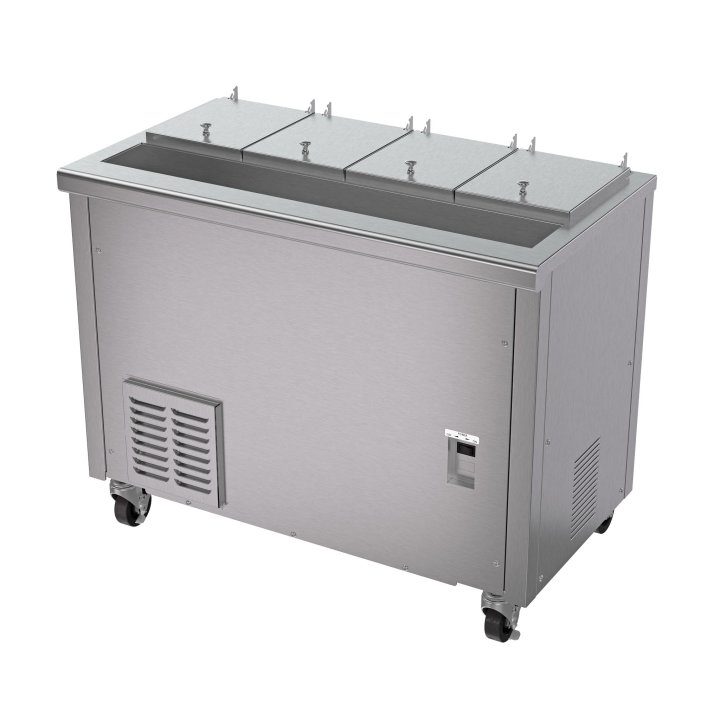

16-liter capacity 115-volt air-cooled 4-compartment refrigerated dipping cabinet
Keep your custard cool and your toppings close at hand with the Stoelting 4-compartment refrigerated dipping cabinet. Custom-designed for continuous-flow frozen custard machines, this energy-efficient cabinet features a storage compartment that can hold up to four 4.25-gallon scooping buckets as well as a refrigerated condiment rail for your fruit, candies and other toppings. Easy to install, use and clean, it features heavy-duty swivel casters, so you can move it effortlessly, and its removable covers allow you to quickly access all of your products.
- Nontoxic low-environmental-impact refrigerant with excellent thermodynamic performance, featuring zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
- Refrigerated condiment rail holds chilled fruit, candies and/or serving items
- Container storage compartments hold four 4.25-gallon (16-liter) square buckets, ideal for scooping
- Custom-designed for use with continuous-flow frozen custard machines
- Heavy-duty swivel casters allow for portability
- Easy installation
- Removable cabinet covers allow easy access to the product
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | DC4 |
| UPC | 671080548098 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 44-3/8 x 24 x 36-7/8 |
| (W) Width (IN) | 44.37 |
| (D) Depth (IN) | 24 |
| (H) Height (IN) | 36.87 |
| Overall Dimensions (CM) | 112.7 x 61 x 93.7 |
| (W) Width (CM) | 112.7 |
| (D) Depth (CM) | 61 |
| (H) Height (CM) | 93.7 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Running Amps | 9 |
| Voltage | 115 |
Volume
| Name | Value |
|---|---|
| Container Capacity (GAL) | 4.25 |
| Container Capacity (L) | 16.09 |
| Total Container Capacity (GAL) | 17 |
| Total Container Capacity (L) | 64.35 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 260 |
| Weight (KG) | 117.9 |
Construction
| Name | Value |
|---|---|
| Number of Compartments | 4 |
| Refrigerant | R290 |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 1300 |
| Air Flow | Units require 6" (15.2 cm) air space on all sides. |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 49 |
| Case Height | 44 |
| Case Length | 28 |
