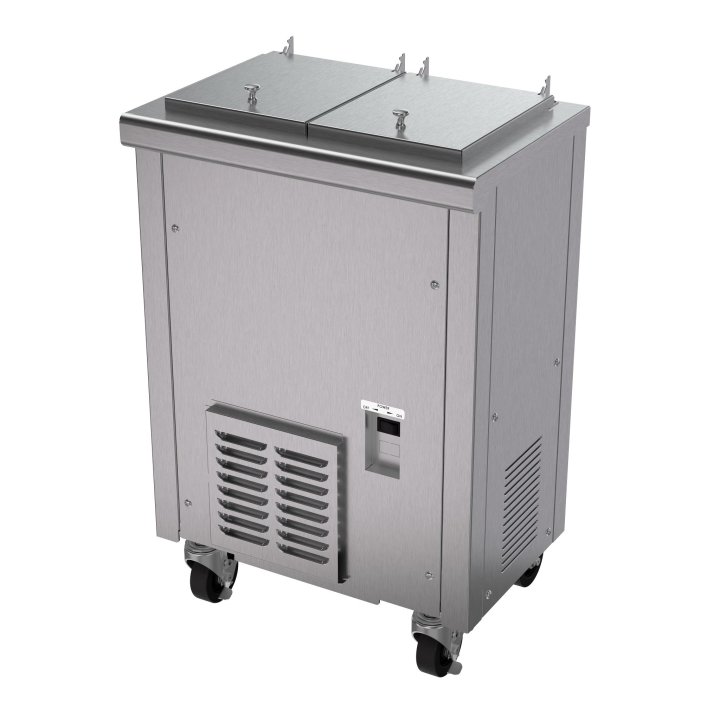

115-volt air-cooled 1-phase two-compartment frozen custard and Italian ice dipping cabinet

115-volt air-cooled 1-phase two-compartment frozen custard and Italian ice dipping cabinet

Rest assured knowing your frozen custard or refreshing Italian ices are kept at the perfect dipping temperature with the two-compartment dipping cabinet. Custom-designed for use with continuous-flow frozen custard and Italian ice machines, this 115-volt, 1-phase, air-cooled storage cabinet comes equipped with a refrigerated condiment rail and two 4 ¼-gallon (16 liter) square containers.

  • 115-volt, air-cooled, 1-phase dipping cabinet with two compartments and a refrigerated condiment rail
  • Precise, consistent dipping temperature, thanks to digital temperature control
  • Container storage compartment holds two 4 ¼-gallon (16-liter) square buckets, ideal for scooping
  • Removable cabinet covers allow easy access to the product
  • Custom-designed for use with continuous-flow frozen custard and Italian ice machines
  • Heavy-duty swivel casters allow you to easily move the cabinet
  • Easy installation, cleaning and maintenance

Product Specifications

Model Information
Name Value
Model MDC2
UPC 671080548050
Unit Dimensions
Name Value
Overall Dimensions (IN) 23-7/8 x 15-7/8 x 36-7/8
(W) Width (IN) 23.87
(D) Depth (IN) 15.87
(H) Height (IN) 36.87
Overall Dimensions (CM) 60.6 x 40.3 x 93.7
(W) Width (CM) 60.6
(D) Depth (CM) 40.3
(H) Height (CM) 93.7
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 1
Plug NEMA 5-15P
Plug Connection Yes
Running Amps 5.3
Voltage 115
Volume
Name Value
Container Capacity (GAL) 4.25
Container Capacity (L) 16.09
Total Container Capacity (GAL) 8.5
Total Container Capacity (L) 32.18
Weight
Name Value
Weight (LB) 130
Weight (KG) 59
Construction
Name Value
Number of Compartments 2
Refrigerant R290
Frozen Treat: General Specifications
Name Value
Cooling Air
Compressor (Btu/hr) 1000
Air Flow Units require 6" (15.2 cm) air space on all sides.
Case Lot Measurement
Name Value
Case Width 37
Case Height 41
Case Length 22
