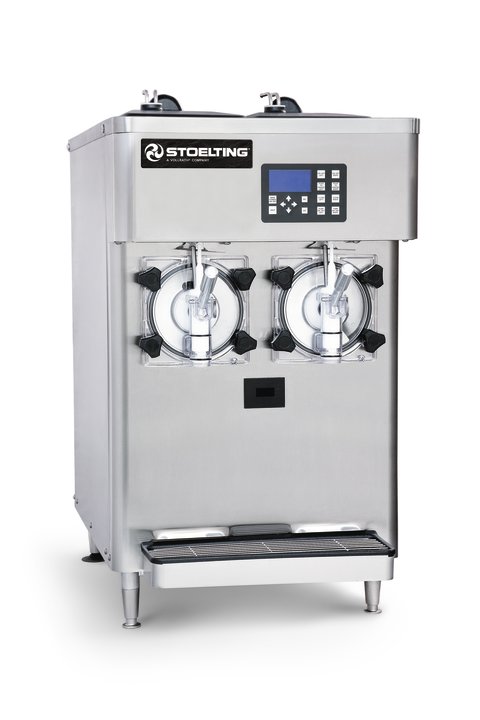

E122-38I2P
Shake or Frozen Beverage, Counter Top
Counter Top Shake or Frozen Beverage Freezer. Compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails. IntelliTec2™ control communicates with the operator through a multiline graphics LCD using full text instructions.
- Compact, space-saver unit, offers the convenience to serve frozen beverages, shakes, smoothies or frozen cocktails.
- Innovative IntelliTec2™ control communicates with the operator through a multiline graphics LCD using full text instructions.
- High capacity refrigeration system with a 5,500 Btu/hr compressor results in high efficiency and production of shakes or frozen beverages.
- Stainless steel auger, heavy-duty speed reducer, and two-1/3 hp drive motors sets the standard for long life dependability.
- Clear doors show visible moving product for merchandising appeal.
- Built in auto-fill capability to increase drink production.
- Mix level indicator notifies user of low mix levels to help manage product inventory.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080487595 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19-5/8 x 30-1/4 x 35-1/2 |
| (W) Width (IN) | 19.62 |
| (D) Depth (IN) | 30.25 |
| (H) Height (IN) | 35.5 |
| (WL) Width between legs | 16.75 |
| (DL) Depth between legs | 20.75 |
| Overall Dimensions (CM) | 49.8 x 76.8 x 90.2 |
| (W) Width (CM) | 49.8 |
| (D) Depth (CM) | 76.8 |
| (H) Height (CM) | 90.2 |
| (WL) Width between legs (CM) | 42.5 |
| (DL) Depth between legs (CM) | 52.7 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 6-15P |
| Plug Connection | Yes |
| Running Amps | 10.6 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 275 |
| Weight (KG) | 124.7 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Compressor (Btu/hr) | 6400 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 1/3 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Air Flow | Units require 6" (15.24 cm) air space on both sides |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 3 |
| Hopper Capacity (L) | 11.36 |
| Total Hopper Capacity (GAL) | 6 |
| Total Hopper Capacity (L) | 22.71 |
| Freezing Cylinder Capacity (GAL) | 2.13 |
| Freezing Cylinder Capacity (L) | 8.06 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 29 |
| Case Height | 45 |
| Case Length | 42 |
