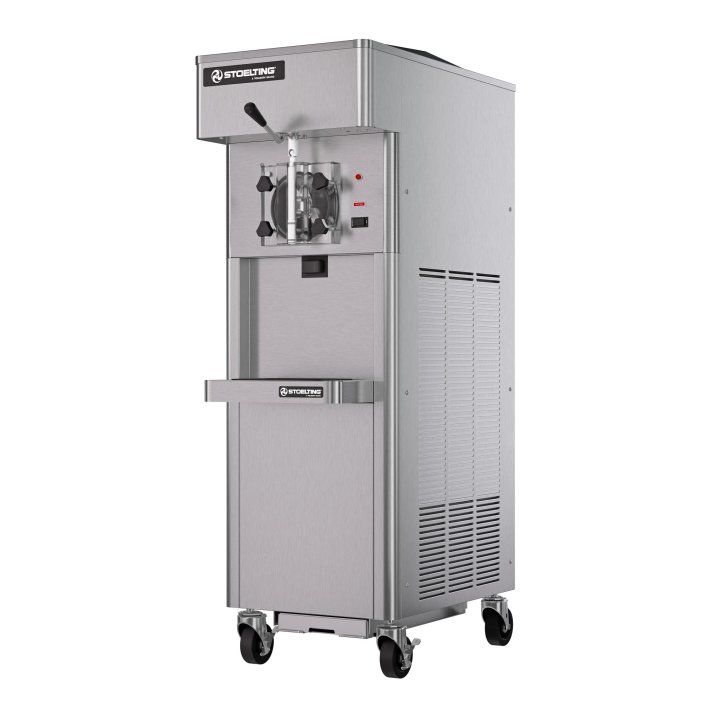

2-gallon freezing cylinder 208- to 240-volt air-cooled 1-phase single-flavor high-capacity gravity-fed floor model shake freezer
Shake up your productivity with this single-flavor high-capacity gravity-fed floor model shake freezer. This 2-gallon-capacity, 208- to 240-volt, air-cooled, 1-phase model features a compact footprint and is ideal for high-volume operations. The highly efficient auger design blends the entire contents of the large freezing cylinder for thick, smooth shakes all day long. It is also easy to operate, clean and maintain, thanks to the reduced number of internal barrel parts, the single selector switch, the splash shield and the unique spigot handle, which activates both the mixer and dispenser individually for fast service.
- 208- to 240-volt, air-cooled, 1-phase model with 2-gallon-capacity freezing cylinder
- Unique, highly efficient auger design blends the entire contents of the freezing cylinder, delivering thick, smooth and creamy shakes
- Simplified operation, cleaning and maintenance reduced number of internal barrel parts, one selector switch and auto-off-clean
- Stainless steel auger, heavy-duty speed reducer and ¾-hp drive motor set the standard for long life dependability
- High-capacity refrigeration system with a 12,000 Btu/hr compressor produces volumes of shakes
- Low-mix warning light with electronic controls
- Side-to-side airflow with removable air filter is quiet and efficient
- Durable stainless steel exterior
- Maintains high production in high-temperature conditions
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080462400 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19 x 31-1/8 x 60-3/8 |
| (W) Width (IN) | 19 |
| (D) Depth (IN) | 31.12 |
| (H) Height (IN) | 60.37 |
| Overall Dimensions (CM) | 48.3 x 79.1 x 153.4 |
| (W) Width (CM) | 48.3 |
| (D) Depth (CM) | 79.1 |
| (H) Height (CM) | 153.4 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 6-20P |
| Plug Connection | Yes |
| Running Amps | 10 |
| Voltage | 208-240 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 315 |
| Weight (KG) | 142.9 |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air |
| Number of Drive Motors | 1 |
| Drive Motor (hp) | 3/4 |
| Number of Hoppers | 1 |
| Hopper: Compressor (Btu/hr) | 1300 |
| Hopper Refrigerant | R-134a |
| Number of Freezing Cylinders | 1 |
| Number of Freezing Cylinder Compressors | 1 |
| Freezing Cylinder Compressor (Btu/hr) | 12000 |
| Freezing Cylinder Refrigerant | R448a |
| Air Flow | Units require 3" (7.6 cm) air space on both sides |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 7 |
| Hopper Capacity (L) | 26.5 |
| Total Hopper Capacity (GAL) | 7 |
| Total Hopper Capacity (L) | 26.5 |
| Freezing Cylinder Capacity (GAL) | 2 |
| Freezing Cylinder Capacity (L) | 7.57 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 33 |
| Case Height | 79 |
| Case Length | 40 |
Product Downloads
Stoelting product CAD drawings
Click below to view the most up-to-date list of Stoelting products and CAD drawings.
CAD / REVIT
