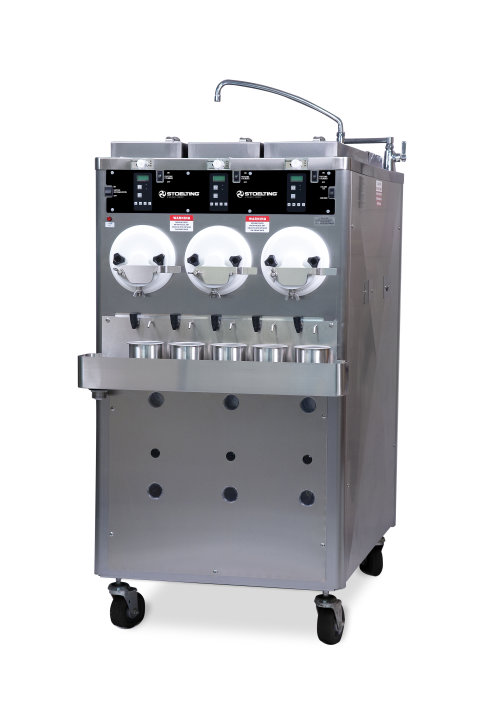

380- to 415-volt 3-phase air-remote-cooled three-barrel custard floor model
Three-barrel, floor standing, continous batch freezer. Diversify your offering by running a combination of flavors and products, or triple your production by using all of the barrels for the same product. Either way, our patented Quick-Freeze Technology™ minimizes the size of ice crystals to produce a smoother, creamier product. Meanwhile, the three 8.8-gallon-mix hoppers and continuous-feed system produces 11 - 14 gallons per barrel per hour. Plus, our refrigerated, top-mounted hopper pans will hold mix at a safe temperature, while the hold cycle keeps the barrels at a safe holding temperature during off-cycle periods.
- Floor standing. Three barrel continous flow freezer
- International: 380-415V/50/3 Remote A/C
- Production Capacity: 11 - 14 gallons per hour, per barrel.
- Dual temperature control dispenses varied product types, such as Italian ice, sorbet, and frozen custard
- Quick-Freeze Technology™ minimizes the size of ice crystals to ensure a smoother, creamier product
- Refrigerated hopper with independent temperature control maintains safe storage temperatures
- Hopper rinse faucet included
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CC303 |
| UPC | 671080522364 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 32.25 x 46.875 x 62.375 |
| (W) Width (IN) | 32.25 |
| (D) Depth (IN) | 46.875 |
| (H) Height (IN) | 62.375 |
| Overall Dimensions (CM) | 81.9 x 119 x 158.4 |
| (W) Width (CM) | 81.915 |
| (D) Depth (CM) | 119.063 |
| (H) Height (CM) | 158.433 |
Electrical
| Name | Value |
|---|---|
| Frequency (Hz) | 50 |
| Hardwired Connection | Yes |
| Hopper Condensing Unit Electrical Phase | 1 |
| Hopper Condensing Unit Frequency | 50 |
| Hopper Condensing Unit Plug | Plug not included |
| Hopper Condensing Unit Running Amps | 9 |
| Hopper Condensing Unit Voltage | 230 |
| Hz | 50 |
| Maximum Overcurrent Protection Device (Per Barrel) | 30 |
| Minimum Circuit Ampacity (Per Barrel) | 19 |
| Phase | 3 |
| Plug Connection | No |
| Voltage | 380-415 |
Volume
| Name | Value |
|---|---|
| Output Capacity per Hour per Freezing Cylinder (GAL) | 14 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 1345 |
| Weight (KG) | 610.1 |
Construction
| Name | Value |
|---|---|
| Air Remote Connections | Units require one remote condensing unit (with compressor) per barrel. The condensing units ship from the factory with 20 lbs of R-404A for up to a 50' line set. Add 1 lb of refrigerant for every 10' increase to the line set. Line set max 100'. |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Cooling | Air Remote |
| Number of Drive Motors | 3 |
| Drive Motor (hp) | 3 |
| Number of Hoppers | 3 |
| Hopper: Compressor (Btu/hr) | 2700 |
| Hopper Refrigerant | R-134a |
| Number of Freezing Cylinders | 3 |
| Number of Freezing Cylinder Compressors | 3 |
| Freezing Cylinder Compressor (Btu/hr) | 9000 |
| Freezing Cylinder Refrigerant | R448a |
| Air Flow | Units require 6" (15.2 cm) air space at the back. |
Frozen Treat: Capacity Specifications
| Name | Value |
|---|---|
| Hopper Capacity (GAL) | 8.8 |
| Hopper Capacity (L) | 33.31 |
| Total Hopper Capacity (GAL) | 26.400000000000002 |
| Total Hopper Capacity (L) | 99.93 |
| Freezing Cylinder Capacity (GAL) | 1.4 |
| Freezing Cylinder Capacity (L) | 5.3 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 61 |
| Case Height | 74 |
| Case Length | 41 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 719124 | $15.45 |
