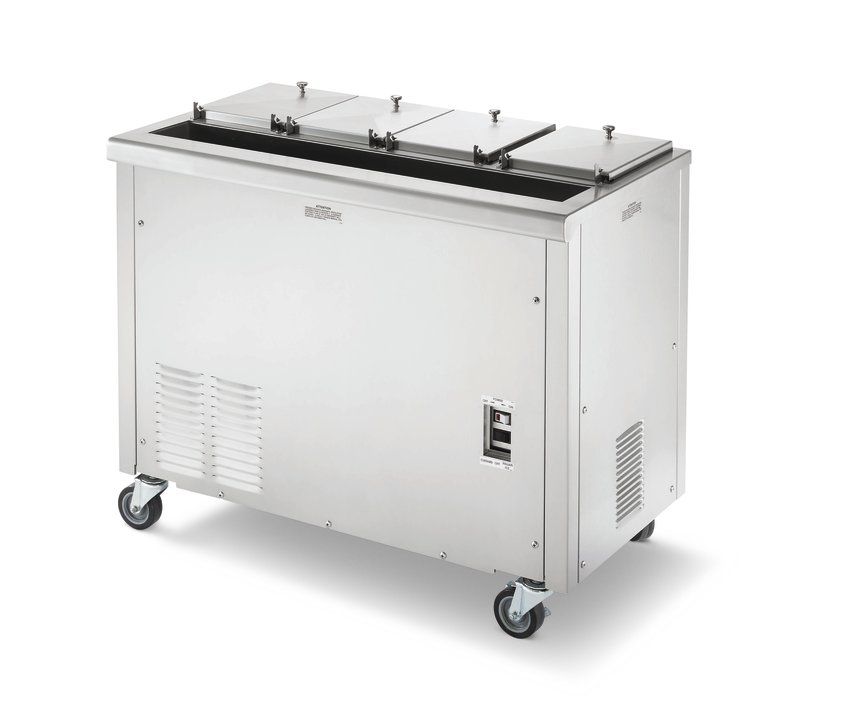

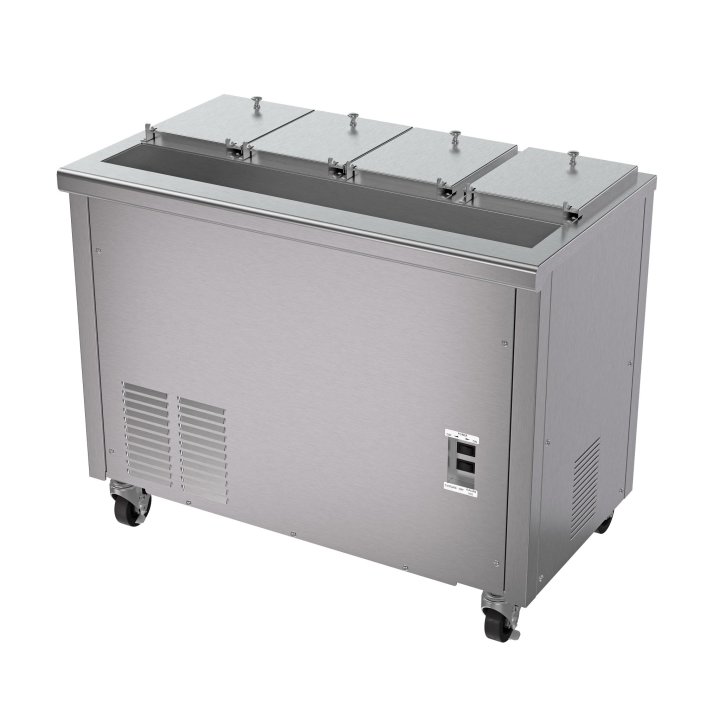

16-liter capacity 115-volt air-cooled 4-compartment refrigerated dipping cabinet with dual-temp controls and reversed hinges

16-liter capacity 115-volt air-cooled 4-compartment refrigerated dipping cabinet with dual-temp controls and reversed hinges

Keep your custard cool and your toppings close at hand with the Stoelting 4-compartment refrigerated dipping cabinet with dual-temp controls and reversed hinges. Custom-designed for continuous-flow frozen custard machines, this energy-efficient cabinet features a storage compartment that can hold up to four 4.25-gallon scooping buckets as well as a refrigerated condiment rail for your fruit, candies and other toppings. The intuitive, dual-temperature control feature allows you to easily keep different products at their preferred temperatures. Easy to install, use and clean, it features heavy-duty swivel casters, so you can move it effortlessly, and its removable covers allow you to quickly access all of your products.

  • Nontoxic low-environmental-impact refrigerant with excellent thermodynamic performance, featuring zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
  • Refrigerated condiment rail holds chilled fruit, candies and/or serving items
  • Dual-temperature control allows you to dispense varied product types, such as Italian ice, sorbet and frozen custard
  • Container storage compartments hold four 4.25-gallon (16-liter) square buckets, ideal for scooping
  • Custom-designed for use with continuous-flow frozen custard machines
  • Heavy-duty swivel casters allow for portability
  • Easy installation
  • Reversed hinges
  • Removable cabinet covers allow easy access to the product

Product Specifications

Model Information
Name Value
Model DC4T
UPC 671080707754
Unit Dimensions
Name Value
Overall Dimensions (IN) 44-3/8 x 24 x 36-7/8
(W) Width (IN) 44.37
(D) Depth (IN) 24
(H) Height (IN) 36.87
Overall Dimensions (CM) 112.7 x 61 x 93.7
(W) Width (CM) 112.7
(D) Depth (CM) 61
(H) Height (CM) 93.7
Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 1
Plug NEMA 5-15P
Plug Connection Yes
Running Amps 9
Voltage 115
Volume
Name Value
Container Capacity (GAL) 4.25
Container Capacity (L) 16.09
Total Container Capacity (GAL) 17
Total Container Capacity (L) 64.35
Weight
Name Value
Weight (LB) 260
Weight (KG) 117.9
Construction
Name Value
Number of Compartments 4
Refrigerant R290
Frozen Treat: General Specifications
Name Value
Cooling Air
Compressor (Btu/hr) 1300
Air Flow Units require 6" (15.2 cm) air space on all sides.

Warranty Information

Terms of Sale

Product Downloads

Resource preview Refrigerated Dipping Cabinets - Specification Sheet (English)
Resource preview DC4T - Specification Sheet (English)
Resource preview DC4T/MDC4 - Operator's Manual (English)
Resource preview Dipping Cabinets - Care and Use (English)
Resource preview Stoelting Foodservice Frozen Treat Equipment - Brochure (English)
Resource preview Stoelting Foodservice Frozen Treat Equipment - Brochure (French)

Stoelting product CAD drawings

Stoelting product CAD drawings

Click below to view the most up-to-date list of Stoelting products and CAD drawings.

View CAD Files

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
