Discontinued

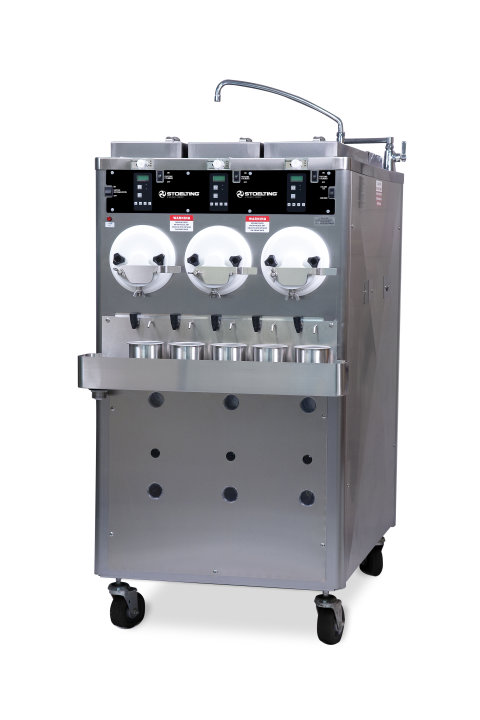

208- to 240-volt 1-phase air-remote-cooled three-barrel custard floor model

Three-barrel, floor standing, continous batch freezer. Diversify your offering by running a combination of flavors and products, or triple your production by using all of the barrels for the same product. Either way, our patented Quick-Freeze Technology™ minimizes the size of ice crystals to produce a smoother, creamier product. Meanwhile, the three 8.8-gallon-mix hoppers and continuous-feed system produces 11 - 14 gallons per barrel per hour. Plus, our refrigerated, top-mounted hopper pans will hold mix at a safe temperature, while the hold cycle keeps the barrels at a safe holding temperature during off-cycle periods.

Floor standing. Three barrel continous flow freezer
208-230V/60/1 Remote A/C
Production Capacity: 11 - 14 gallons per hour, per barrel.
Dual temperature control dispenses varied product types, such as Italian ice, sorbet, and frozen custard
Quick-Freeze Technology™ minimizes the size of ice crystals to ensure a smoother, creamier product
Refrigerated hopper with independent temperature control maintains safe storage temperatures
Hopper rinse faucet included

Product Specifications

Model Information

Name	Value
Model	CC303
UPC	671080230085

Unit Dimensions

Name	Value
Overall Dimensions (IN)	32.25 x 46.875 x 62.375
(W) Width (IN)	32.25
(D) Depth (IN)	46.875
(H) Height (IN)	62.375
Overall Dimensions (CM)	81.9 x 119 x 158.4
(W) Width (CM)	81.915
(D) Depth (CM)	119.063
(H) Height (CM)	158.433

Electrical

Name	Value
Frequency (Hz)	60
Hardwired Connection	Yes
Hopper Condensing Unit Electrical Phase	1
Hopper Condensing Unit Frequency	60
Hopper Condensing Unit Plug	NEMA 5-15P
Hopper Condensing Unit Running Amps	9
Hopper Condensing Unit Voltage	115
Hz	60
Maximum Overcurrent Protection Device (Per Barrel)	25
Minimum Circuit Ampacity (Per Barrel)	12
Phase	1
Plug Connection	No
Voltage	208-240

Volume

Name	Value
Output Capacity per Hour per Freezing Cylinder (GAL)	14

Weight

Name	Value
Weight (LB)	1345
Weight (KG)	610.1

Construction

Name	Value
Air Remote Connections	Units require one remote condensing unit (with compressor) per barrel. The condensing units ship from the factory with 20 lbs of R-404A for up to a 50' line set. Add 1 lb of refrigerant for every 10' increase to the line set. Line set max 100'.

Frozen Treat: General Specifications

Name	Value
Cooling	Air Remote
Number of Drive Motors	3
Drive Motor (hp)	3
Number of Hoppers	3
Hopper: Compressor (Btu/hr)	2700
Hopper Refrigerant	R-134a
Number of Freezing Cylinders	3
Number of Freezing Cylinder Compressors	3
Freezing Cylinder Compressor (Btu/hr)	9000
Freezing Cylinder Refrigerant	R448a
Air Flow	Units require 6" (15.2 cm) air space at the back.

Frozen Treat: Capacity Specifications

Name	Value
Hopper Capacity (GAL)	8.8
Hopper Capacity (L)	33.31
Total Hopper Capacity (GAL)	26.400000000000002
Total Hopper Capacity (L)	99.93
Freezing Cylinder Capacity (GAL)	1.4
Freezing Cylinder Capacity (L)	5.3
